<Glow-Hoop>

Objective:

For Christmas in 2011 I decided to make my mom a purplish LED hoop that she could use at prop festivals and jams.

Videos:

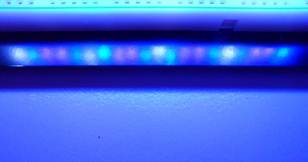

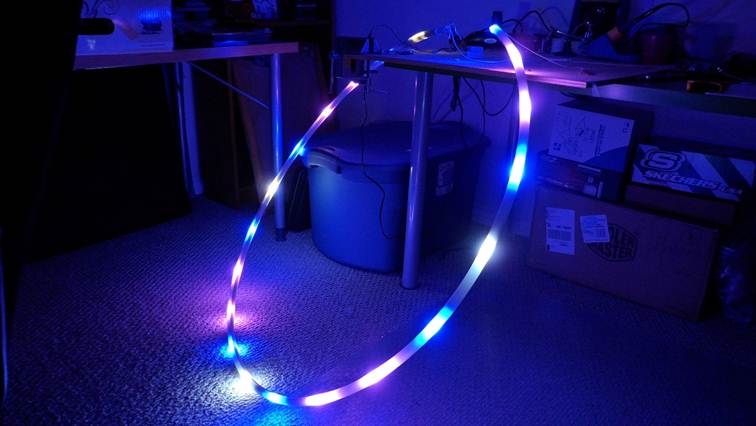

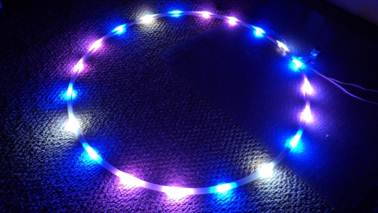

Pictures:

Features/Specifications:

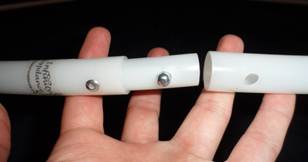

· HDPE plain white Hoop

o 6.25” ID tubing, 37.5” circumference hoop

o push button connector to easily access charger port and LED harness

o Hoop provided by Nina Infinity

· LED Harness

o 21 LED strand with current limiting resistors

o White/blue/purple/purple/blue repeating pattern

o Evenly spaced along circumference of hoop and wrapped in bubble wrap to prevent rattling

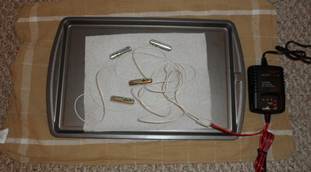

· Rechargeable Battery Pack

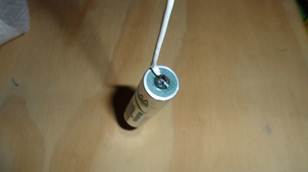

o 4.8V 2300mAhr rechargeable NiMH pack (AA’s)

o Battery weight evenly distributed across the circumference of hoop

o Runtime: ~5 hours

· Charger

o Prophet sport AC/DC peak charger

o Able to be charged from wall outlet at home or from car battery at festivals

o Max charge rate: 1A

o Charge time: ~2.5 hours

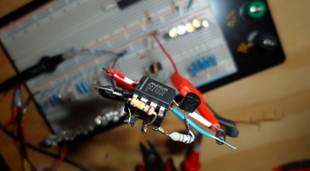

· Low voltage indicator

o Detection at 4.1V to prevent damage to batteries

o A MAX8212 turns off ¼ of the LED harness to indicate to the user that they need to recharge their hoop

Future Work/Notes:

· Switch to a single easy to swap in/out rechargeable lithium ion cell.

· Improve low voltage circuit such that the LED’s and battery automatically shutdown when voltage is too low (maybe find battery with this as included feature)

· Find LED’s with built in current limiting resistors to reduce construction time.

· Experiment with programmable LED hoops

top

<Glow-Footbag>

Objective:

I wanted to enhance my footbag performances by adding a glow element to the both the footbag and the shoe.

Videos:

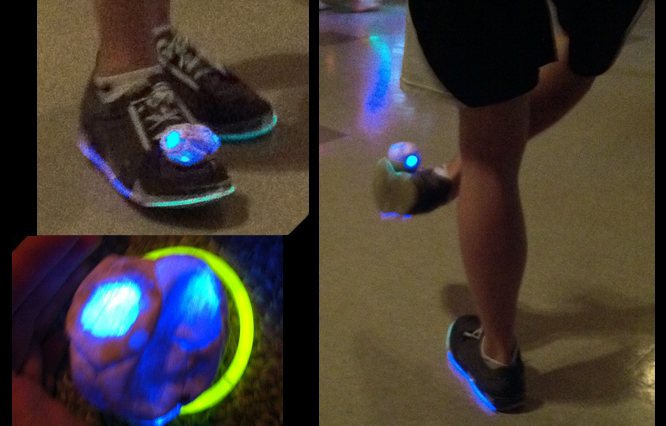

Pictures:

Features/Specifications:

· Footbag

o White transparent fabric

o Weight: ~70g

o Filler: clear beads + metallic filler for extra weight

o 6cm diameter for added visibility

· Shoe

o White quantum 03’s

o Repaired inteps

o Decorated with glow sticks

· Battery pack

o Single CR2032 button cell battery (3V, 225mAhr)

Future Work/Notes:

· Add in sensors to create interactive element (i.e. bag lights and/or shoe lights up when in proximity to each other)

· Experiment with glow-wire

· Find heavier/clear/transparent filler to help increase bag weight and improve the brightness of the bag

top

<Glow-Diabolo>

Objective:

It was impossible to find a charger for my old diabolo LED kit, so I decided to make my own custom kit that would be both brighter and last longer.

Videos:

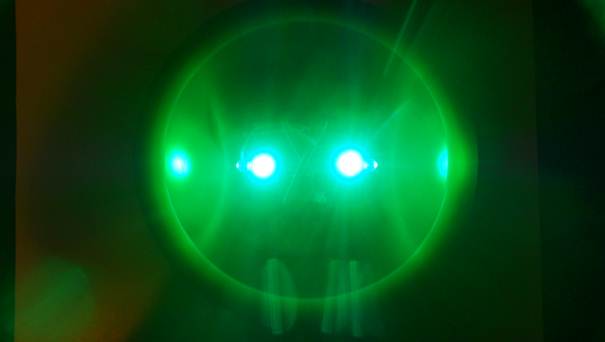

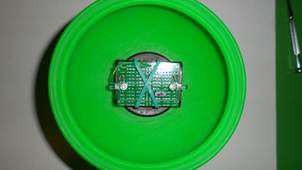

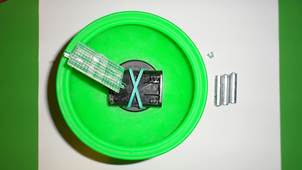

Pictures:

Features/Specifications:

· Diabolo

o Finesse Evolution 4 Diabolo - Green

o Has existing holes for mounting LED kits to spindle

· LED Circuit

o 4 green LED’s (2 axial + 2 radial) per cup

o On/off switch

o Soldered to green protoboard

o Held to 3xAAA holder with zip-ties or elastic bands

· Rechargeable Battery Pack

o 3.6V 850mAhr rechargeable NiMH pack (AAA’s)

o Battery weight evenly distributed across the hub of the diabolo

o Housed in standard 3xAAA holder

o Runtime: ~14 hours

· Charger

o Energizer smart charger

o Charge time: ~6 hours

Future Work/Notes:

· NiMH are a bit too heavy and make the diabolo feel sluggish

· Switch to a single easy to swap in/out rechargeable lithium ion cell (button if possible).

· Add LED’s to the diabolo sticks. Right now it is kind of hard to see the string/sticks in the dark

top

<Tauntaun>

Objective:

For Halloween 2011 my brother-in-law decided to make a walking Tauntaun costume. In order to increase the realism of the costume he asked me to design animatronic eyelids.

Videos:

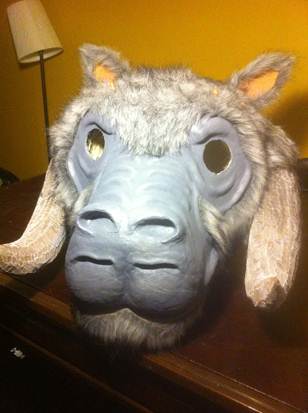

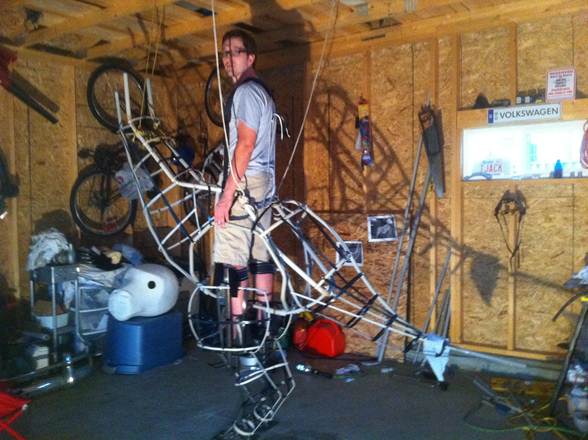

Pictures of entire costume:

Features/Specifications for Animatronic Eyelids:

· Actuator

o Hitec HS-55 servomotor in each eyeball

· Servo Controller

o Arduino Duemilanove

o Custom software that blinks the eyelids every 5-10 seconds and winks every 5-8 blinks

· Mechanism

o Servo fixed to block of wood inside hemispherical plastic eyeball

o Servo wire transmits rotation of servo horn to blinking movement of eyelid

· Battery pack

o 8.4V 2200mAhr NiMH battery pack

o Runtime: ~ 8 hours

· Charger

o Prophet sport AC/DC peak charger

o Able to be charged from wall outlet at home or from car battery at festivals

o Max charge rate: 1A

o Charge time: ~2.5 hours

Future Work/Notes:

· The costume was a huge success and won 1^st prize in two separate Halloween events put on by radio stations in Edmonton. The total prize money won between both events was $6000 + an all terrain vehicle valued at $10000.

· The blinking/winking of the eyelids blew many drunk peoples’ minds

· Future work may involve getting other parts of the face moving including side to side movement of the eyes and the opening and closing of the mouth.

top

<MTT>

Objective:

To design a Myoelectric Training Tool (MTT) for upper-limb amputees to help them learn how to use myoelectric technology in advance of being fit with their actual prostheses. This training tool is also used as a research platform for creating improved myoelectric controllers and sensory feedback systems.

Videos:

MTT Demonstration Video

Picture:

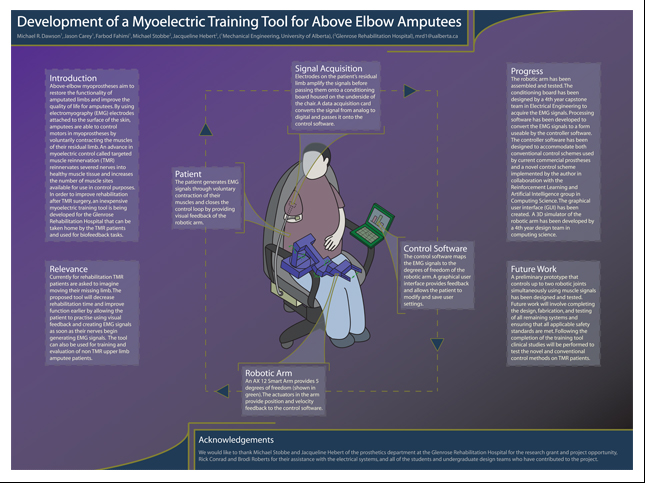

Research Poster:

(View Poster in PDF)

Features/Specifications:

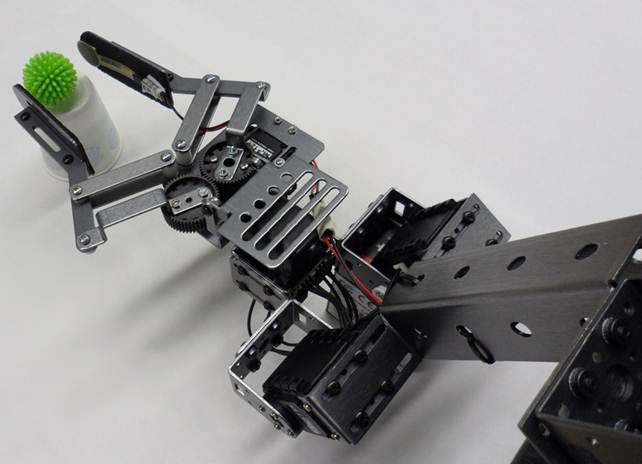

· Robotic Arm

o AX12 Smart Arm (Crustcrawler Inc), 5 degrees of freedom (DoF) similar to commercial prostheses

o AX12 3D Simulator – software based simulator that can be used in situations where actual robotic arm is infeasible

· EMG Acquisition

o Delsys Bagnoli-8 EMG Acquisition system (8 Channels)

· Control Software

o Development environment: xPC Target real time operating system

o Conventional EMG controller allows for control of up to two DoF simultaneously with an extra channel available for sequential switching on one of the channel pairs

· Graphical User Interface

o Windows based GUI developed in Microsoft visual studios

o Allows patient to view their EMG signals and save/open/adjust their controller settings

Publication:

· The Development of a Myoelectric Training Tool for Above-Elbow Amputees

Future Work/Notes:

· Research prototype developed for my MSc graduate degree

· Clinical prototype, machine learning based controllers, and sensory feedback systems in development as part of my current position at the Glenrose Rehabilitation Hospital and University of Alberta

top

<Lambo-EV>

Objective:

To convert a Lamborghini Diablo replica car from internal combustion to electric while still achieving comparable acceleration, max speed, and range.

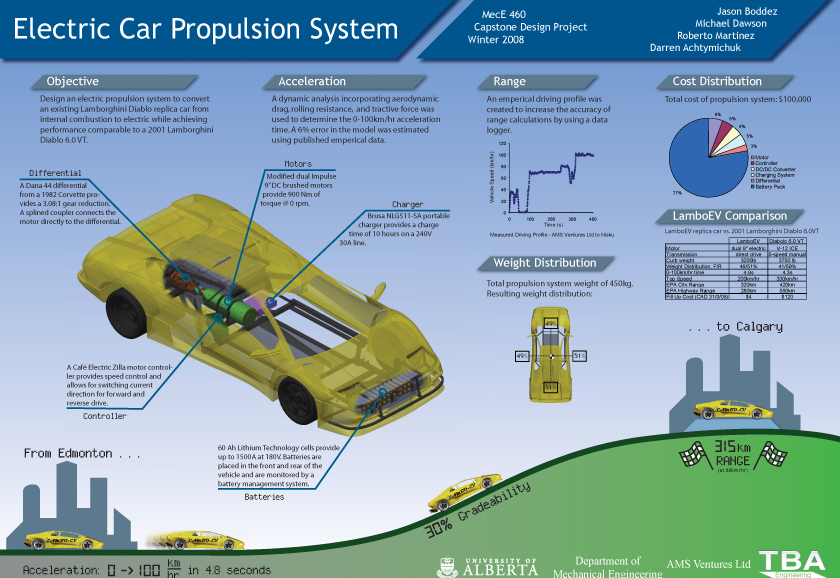

Development Poster:

(View poster in PDF)

Presentation Pictures:

Future Work/Notes:

· Developed for my 4^th year capstone course in Mechanical Engineering

· 1^st place MecE 460 Capstone Award Competition (selected to represent University of Alberta at nationals)

· 3^rd place in CSME National Student Design Competition

top

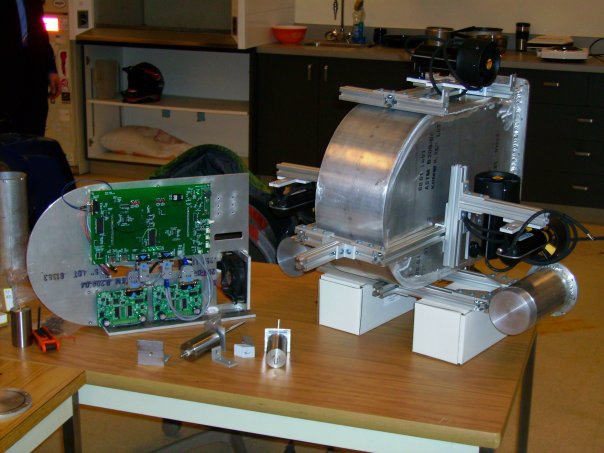

<Bearacuda>

Objective:

To design and build an autonomous underwater vehicle to compete in the AUVSI International Robosub competition.

Videos:

Pictures:

Future Work/Notes:

· Developed as part of the Autonomous Robotics Vehicle Project (ARVP) at the University of Alberta

· I was the mechanical team leader and oversaw the development of the Bearacuda platform

· Placed 17^th out of 25 teams in the 2008 competition

top
